Mediator

Also known as: Intermediary, Controller

Intent

Mediator is a behavioral design pattern that lets you reduce chaotic dependencies between objects. The pattern restricts direct communications between the objects and forces them to collaborate only via a mediator object.

Mediator design pattern

Problem

Say you have a dialog for creating and editing customer profiles. It consists of various form controls such as text fields, checkboxes, buttons, etc.

Chaotic relations between elements of the user interface

Relations between elements of the user interface can become chaotic as the application evolves.

Some of the form elements may interact with others. For instance, selecting the “I have a dog” checkbox may reveal a hidden text field for entering the dog’s name. Another example is the submit button that has to validate values of all fields before saving the data.

Elements of the UI are interdependent

Elements can have lots of relations with other elements. Hence, changes to some elements may affect the others.

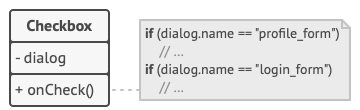

By having this logic implemented directly inside the code of the form elements you make these elements’ classes much harder to reuse in other forms of the app. For example, you won’t be able to use that checkbox class inside another form, because it’s coupled to the dog’s text field. You can use either all the classes involved in rendering the profile form, or none at all.

Solution

The Mediator pattern suggests that you should cease all direct communication between the components which you want to make independent of each other. Instead, these components must collaborate indirectly, by calling a special mediator object that redirects the calls to appropriate components. As a result, the components depend only on a single mediator class instead of being coupled to dozens of their colleagues.

In our example with the profile editing form, the dialog class itself may act as the mediator. Most likely, the dialog class is already aware of all of its sub-elements, so you won’t even need to introduce new dependencies into this class.

UI elements should communicate via the mediator.

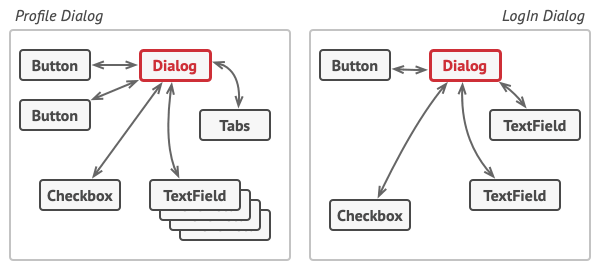

UI elements should communicate indirectly, via the mediator object.

The most significant change happens to the actual form elements. Let’s consider the submit button. Previously, each time a user clicked the button, it had to validate the values of all individual form elements. Now its single job is to notify the dialog about the click. Upon receiving this notification, the dialog itself performs the validations or passes the task to the individual elements. Thus, instead of being tied to a dozen form elements, the button is only dependent on the dialog class.

You can go further and make the dependency even looser by extracting the common interface for all types of dialogs. The interface would declare the notification method which all form elements can use to notify the dialog about events happening to those elements. Thus, our submit button should now be able to work with any dialog that implements that interface.

This way, the Mediator pattern lets you encapsulate a complex web of relations between various objects inside a single mediator object. The fewer dependencies a class has, the easier it becomes to modify, extend or reuse that class.

Real-World Analogy

Air traffic control tower

Aircraft pilots don’t talk to each other directly when deciding who gets to land their plane next. All communication goes through the control tower.

Pilots of aircraft that approach or depart the airport control area don’t communicate directly with each other. Instead, they speak to an air traffic controller, who sits in a tall tower somewhere near the airstrip. Without the air traffic controller, pilots would need to be aware of every plane in the vicinity of the airport, discussing landing priorities with a committee of dozens of other pilots. That would probably skyrocket the airplane crash statistics.

The tower doesn’t need to control the whole flight. It exists only to enforce constraints in the terminal area because the number of involved actors there might be overwhelming to a pilot.

Structure

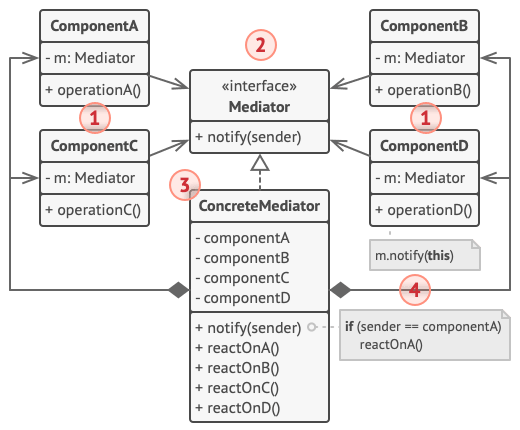

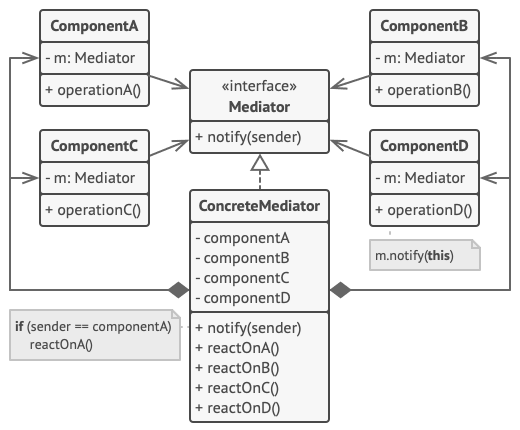

Structure of the Mediator design patternStructure of the Mediator design pattern
  1. Components are various classes that contain some business logic. Each component has a reference to a mediator, declared with the type of the mediator interface. The component isn’t aware of the actual class of the mediator, so you can reuse the component in other programs by linking it to a different mediator.

  2. The Mediator interface declares methods of communication with components, which usually include just a single notification method. Components may pass any context as arguments of this method, including their own objects, but only in such a way that no coupling occurs between a receiving component and the sender’s class.

  3. Concrete Mediators encapsulate relations between various components. Concrete mediators often keep references to all components they manage and sometimes even manage their lifecycle.

  4. Components must not be aware of other components. If something important happens within or to a component, it must only notify the mediator. When the mediator receives the notification, it can easily identify the sender, which might be just enough to decide what component should be triggered in return.

    From a component’s perspective, it all looks like a total black box. The sender doesn’t know who’ll end up handling its request, and the receiver doesn’t know who sent the request in the first place.

Pseudocode

In this example, the Mediator pattern helps you eliminate mutual dependencies between various UI classes: buttons, checkboxes and text labels.

Structure of the Mediator pattern example

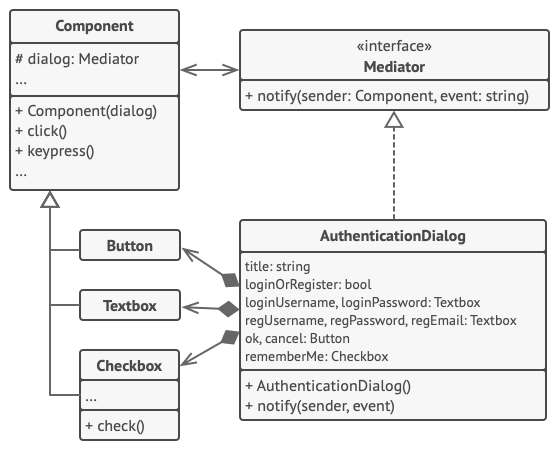

Structure of the UI dialog classes.

An element, triggered by a user, doesn’t communicate with other elements directly, even if it looks like it’s supposed to. Instead, the element only needs to let its mediator know about the event, passing any contextual info along with that notification.

In this example, the whole authentication dialog acts as the mediator. It knows how concrete elements are supposed to collaborate and facilitates their indirect communication. Upon receiving a notification about an event, the dialog decides what element should address the event and redirects the call accordingly.

// The mediator interface declares a method used by components
// to notify the mediator about various events. The mediator may
// react to these events and pass the execution to other
// components.
interface Mediator is
    method notify(sender: Component, event: string)


// The concrete mediator class. The intertwined web of
// connections between individual components has been untangled
// and moved into the mediator.
class AuthenticationDialog implements Mediator is
    private field title: string
    private field loginOrRegisterChkBx: Checkbox
    private field loginUsername, loginPassword: Textbox
    private field registrationUsername, registrationPassword,
                  registrationEmail: Textbox
    private field okBtn, cancelBtn: Button

    constructor AuthenticationDialog() is
        // Create all component objects by passing the current
        // mediator into their constructors to establish links.

    // When something happens with a component, it notifies the
    // mediator. Upon receiving a notification, the mediator may
    // do something on its own or pass the request to another
    // component.
    method notify(sender, event) is
        if (sender == loginOrRegisterChkBx and event == "check")
            if (loginOrRegisterChkBx.checked)
                title = "Log in"
                // 1. Show login form components.
                // 2. Hide registration form components.
            else
                title = "Register"
                // 1. Show registration form components.
                // 2. Hide login form components

        if (sender == okBtn && event == "click")
            if (loginOrRegister.checked)
                // Try to find a user using login credentials.
                if (!found)
                    // Show an error message above the login
                    // field.
            else
                // 1. Create a user account using data from the
                // registration fields.
                // 2. Log that user in.
                // ...


// Components communicate with a mediator using the mediator
// interface. Thanks to that, you can use the same components in
// other contexts by linking them with different mediator
// objects.
class Component is
    field dialog: Mediator

    constructor Component(dialog) is
        this.dialog = dialog

    method click() is
        dialog.notify(this, "click")

    method keypress() is
        dialog.notify(this, "keypress")

// Concrete components don't talk to each other. They have only
// one communication channel, which is sending notifications to
// the mediator.
class Button extends Component is
    // ...

class Textbox extends Component is
    // ...

class Checkbox extends Component is
    method check() is
        dialog.notify(this, "check")
    // ...

Applicability

Use the Mediator pattern when it’s hard to change some of the classes because they are tightly coupled to a bunch of other classes.

The pattern lets you extract all the relationships between classes into a separate class, isolating any changes to a specific component from the rest of the components.

Use the pattern when you can’t reuse a component in a different program because it’s too dependent on other components.

After you apply the Mediator, individual components become unaware of the other components. They could still communicate with each other, albeit indirectly, through a mediator object. To reuse a component in a different app, you need to provide it with a new mediator class.

Use the Mediator when you find yourself creating tons of component subclasses just to reuse some basic behavior in various contexts.

Since all relations between components are contained within the mediator, it’s easy to define entirely new ways for these components to collaborate by introducing new mediator classes, without having to change the components themselves.

How to Implement

  1. Identify a group of tightly coupled classes which would benefit from being more independent (e.g., for easier maintenance or simpler reuse of these classes).

  2. Declare the mediator interface and describe the desired communication protocol between mediators and various components. In most cases, a single method for receiving notifications from components is sufficient.

    This interface is crucial when you want to reuse component classes in different contexts. As long as the component works with its mediator via the generic interface, you can link the component with a different implementation of the mediator.

  3. Implement the concrete mediator class. Consider storing references to all components inside the mediator. This way, you could call any component from the mediator’s methods.

  4. You can go even further and make the mediator responsible for the creation and destruction of component objects. After this, the mediator may resemble a factory or a facade.

  5. Components should store a reference to the mediator object. The connection is usually established in the component’s constructor, where a mediator object is passed as an argument.

  6. Change the components’ code so that they call the mediator’s notification method instead of methods on other components. Extract the code that involves calling other components into the mediator class. Execute this code whenever the mediator receives notifications from that component.

Pros and Cons

  • Single Responsibility Principle. You can extract the communications between various components into a single place, making it easier to comprehend and maintain.
  • Open/Closed Principle. You can introduce new mediators without having to change the actual components.
  • You can reduce coupling between various components of a program.
  • You can reuse individual components more easily.
  • Over time a mediator can evolve into a God Object.

Relations with Other Patterns

  • Chain of Responsibility, Command, Mediator and Observer address various ways of connecting senders and receivers of requests:

    • Chain of Responsibility passes a request sequentially along a dynamic chain of potential receivers until one of them handles it.
    • Command establishes unidirectional connections between senders and receivers.
    • Mediator eliminates direct connections between senders and receivers, forcing them to communicate indirectly via a mediator object.
    • Observer lets receivers dynamically subscribe to and unsubscribe from receiving requests.
  • Facade and Mediator have similar jobs: they try to organize collaboration between lots of tightly coupled classes.

    • Facade defines a simplified interface to a subsystem of objects, but it doesn’t introduce any new functionality. The subsystem itself is unaware of the facade. Objects within the subsystem can communicate directly.
    • Mediator centralizes communication between components of the system. The components only know about the mediator object and don’t communicate directly.
  • The difference between Mediator and Observer is often elusive. In most cases, you can implement either of these patterns; but sometimes you can apply both simultaneously. Let’s see how we can do that.

    The primary goal of Mediator is to eliminate mutual dependencies among a set of system components. Instead, these components become dependent on a single mediator object. The goal of Observer is to establish dynamic one-way connections between objects, where some objects act as subordinates of others.

    There’s a popular implementation of the Mediator pattern that relies on Observer. The mediator object plays the role of publisher, and the components act as subscribers which subscribe to and unsubscribe from the mediator’s events. When Mediator is implemented this way, it may look very similar to Observer.

    When you’re confused, remember that you can implement the Mediator pattern in other ways. For example, you can permanently link all the components to the same mediator object. This implementation won’t resemble Observer but will still be an instance of the Mediator pattern.

    Now imagine a program where all components have become publishers, allowing dynamic connections between each other. There won’t be a centralized mediator object, only a distributed set of observers.

Code Examples

Mediator in C# Mediator in C++ Mediator in Go Mediator in Java Mediator in PHP Mediator in Python Mediator in Ruby Mediator in Rust Mediator in Swift Mediator in TypeScript
